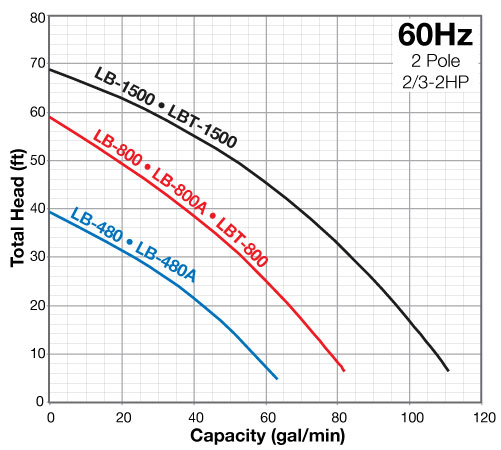

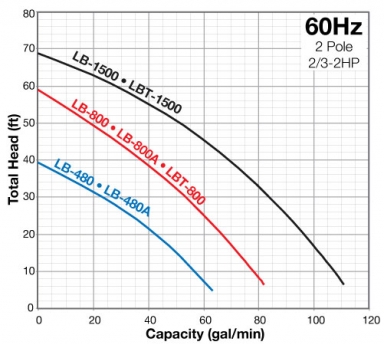

Max Capacity: 82gpm
Max Head: 59ft
Solid size capacity: 1/4"
MOTOR
- Amperage - Rated: 5.1 @ 230V
- Amperage - Starting: 21.2 @ 230V
- Continuous Duty, Air Filled, 3600RPM, 60Hz
- Protection: Circle Thermal Protector
- Plug Configuration: No Plug
- Cable Length: 50 ft
- Max Cable Length: 190ft @ 220V
- Recommended Generator Capacity: 4600w
- Opt Float Switch: TS-303 @ 230V
PUMP
- Impeller Material: Urethane Rubber
- Casing Material: Butadiene Rubber and Natural Rubber
- Wear Plate Material: Urethane Rubber
- Shaft Seal: Double inside mechanical seal with Silicon
- Seal Protectant: V-Ring and Oil Lifter
- Seal Lubricant: SAE 10W/20W or Turbine Oil (ISO VG32)
- Discharge Connection: 2" NPT Coupling
DIMENSION
- Continuous Running Water Level: 2"
- Diameter x Height = 7-9/16" X 13-7/16"
- Shipping weight: 33 lbs
