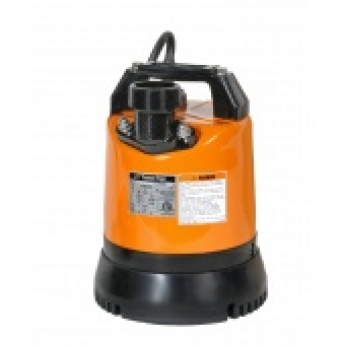

Tsurumi LSR2.4S - 2" Ground Drainage Pump, Single Phase

Tsurumi LSR2.4S-62 2 Tsurumi LSR2.4S-62 2 Tsurumi LSR2.4S-62 2

LOCATION:
In Stock
HOURS:
New
PRICE:

503.10

    Tsurumi LSR2.4S is ideal for complete drainage of flat surfaces where a sump is not available: rooftops, parking garages, underpasses, utility pits, basements, pools and spas.

CONTACT US

For assistance with pump selection, freight and contractor, municipality or government pricing – Call us at 206-788-7952 or 425-423-PUMP.

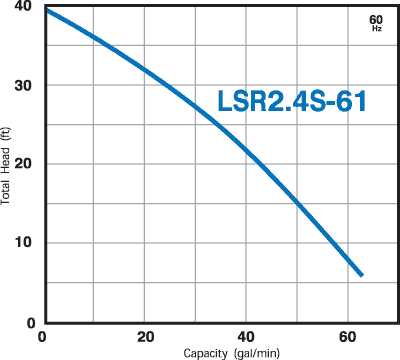

Max Capacity: 62.4gpm

Max Head: 39.5ft

Solid size capacity: 0.236"

MOTOR

  • Max. power output: 2/3 hp
  • Voltage: 110V
  • Amperage - Rated: 6.1 @ 110V
  • Amperage - Start: 12.5 @ 110V
  • Continuous Duty, Air Filled, 3600RPM, 60Hz
  • Protection: Miniature Protector
  • Plug Configuration: 5-15P @ 110V
  • Cable Length: 32 ft
  • Max Cable Length: 62 @ 110V
  • Recommended Generator Capacity: 2700w
  • Opt Float Switch: TS-301 (110V Operation Only)

PUMP

  • Impeller Material: Urethane Rubber
  • Casing Material: Ethlyene Propylene Rubber
  • Wear Plate Material: Integral Part of Casting
  • Shaft Seal: Double inside mechanical seal with Silicon Carbide
  • Seal Lubricant: SAE 10W/20W or Turbine Oil (ISO VG32)
  • Seal Protectant: V-Ring and Oil Lifter
  • Discharge Connection: 2" NPT Coupling

DIMENSION

  • Continuous Running Water Level: 0.20"
  • Diameter x Height = 8-1/4" X 11-3/8"
  • Shipping weight: 32 lbs
